Roga Express Slitter Machine

TECHNICAL SPECIFICATIONS :
1-) With the help of the operator PLC and the Touch Panel, all the units of the machine will pass the material smoothly at the beginning and end of the process, slowing the blades, accelerating, tension and edge control, and will perform a smooth and mass production.
Bobbin change is very easy and fast.
It does not impose an extra burden on the operator and the business.

Types of materials that can be worked on:

a- Laminated materials: -------------- 220 micron
b- Paper: -------------------------------- 40-450 gr
c- Aluminum: -------------------------- 14-80 micron
d- B.O.P.P.:----------------------------- 12-220 microns
e- P.P.:---------------------------------- 12-220 microns
f- C.P.P: --------------------------------- 12-220 microns
g- Strec film

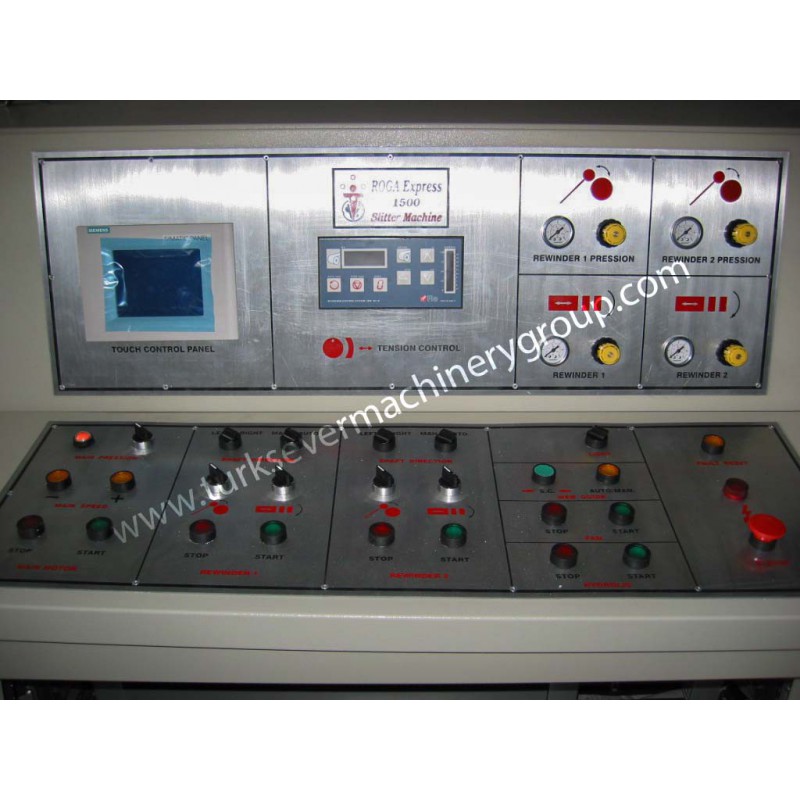

CONTROL PANEL
1- There is a separate panel to keep electrical and electronic components from machine vibrations.
2- All motor drives each have isolation switches and protect drivers and motors against energy fluctuations.
3-Speed ​​can be set automatically on the machine
4-Measuring the windings, instantaneous tension, malfunctions and so on. There is a touch screen for us to control the operations.
5- Tension control system in the machine can be done with electronic loadcell as well as with material thickness.
6- A special program is available to operate in frictional conditions.
7- There are fault warning commands for easy intervention to all kinds of fault systems.
8- Total quantity indicator is available.
9- The machine automatically stops according to the set quantity.
10- Shows the number of running sets
11- All pneumatic, hydromatic, engine start-stop etc buttons on the machine are clearly placed on the control panel.

SOLVENT UNIT

1-Bobbin attaching system: ------------- Shafts
2- Outer Bobbin diameter: -------------------- 1000 mm
3- Bobbin width: ------------------------- 1500 mm
4- Bobbin helmet inner core diameter: ---- 76 mm (3 inches.) - 152 mm (6 inches.)
5- Depending on the hydraulic power, bobbin holding beds can be moved right, left or both at the same time with a button.
6- 3 '' and 6 '' bobbin holder heads automatically hold the bobbin from the bobbin helmet.
7- There are 2 pneumatic brakes connected to the right and left bobbin holder heads.
8- There is 1 adjustment roller to take the bagging of the film coming out of the solvent.
9- There is an automatic control system with load cell that controls the tension of the bobbin in the unwinder.

EDGE CONTROL SYSTEM
1- The double-sided edge control system is designed to work 150mm left and right.
2- Edge control system is made with a step motor.
3- Edge control system is able to follow both lines and edges.
4- The system works with ultrasonic sensor, infrared sensor and optical sensor when requested.

CUTTING UNIT

1- 1mm gap provides great convenience to the user.The lower blade system consisting of
2- 1 mm lower blades are made up of 70mm pieces against future problems.
3- The 1mm lower blades can be easily removed and provide great convenience to install the lower blades used in the paper industry if desired.

TAKE OF UNIT
1- Attractive roller is chrome plated and ground.
2- Rubber coated rollers that provide traction of the material are with pneumatic piston.
3- Emergency braking system is available in case of problems.
4- The main engine is connected to the main roller by timing belt.

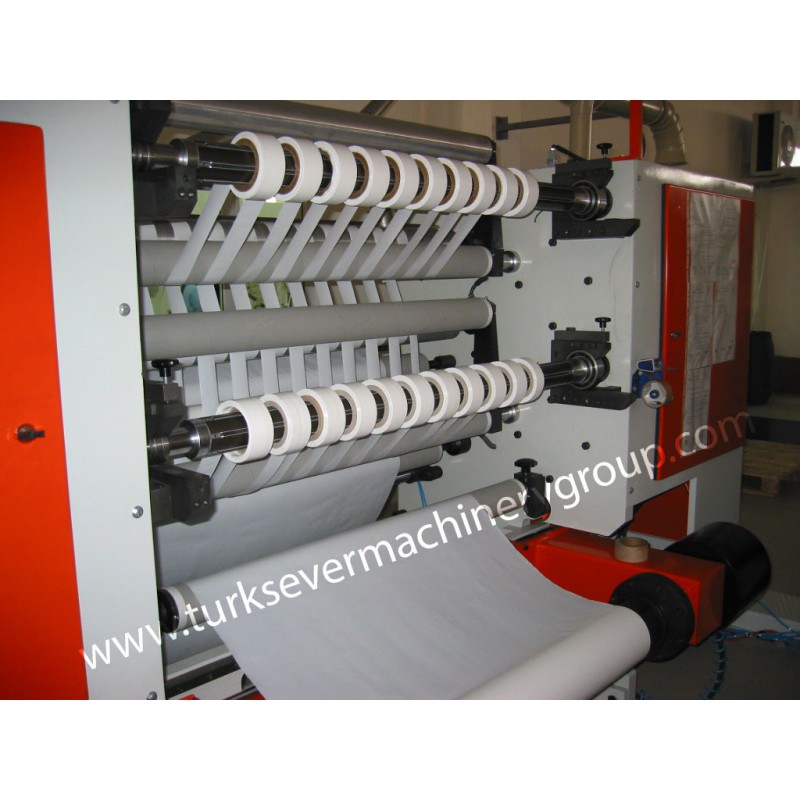

WINDER UNIT
1- Winder bobbin diameters: ---------- 500 mm
2- There are two bobbin winding shafts.
3- There is a system that can operate friction shaft.
4- There is a separate tension control system that controls both wrappers.
5- Coilers can work with both three inches and six inches shaft.
6- Control system of the winders is electro servo.
7- There are rubber covered pressor rollers pressing on the wrapper shafts.
8- In order to facilitate the bobbin lowering, it is manufactured with hinged.
