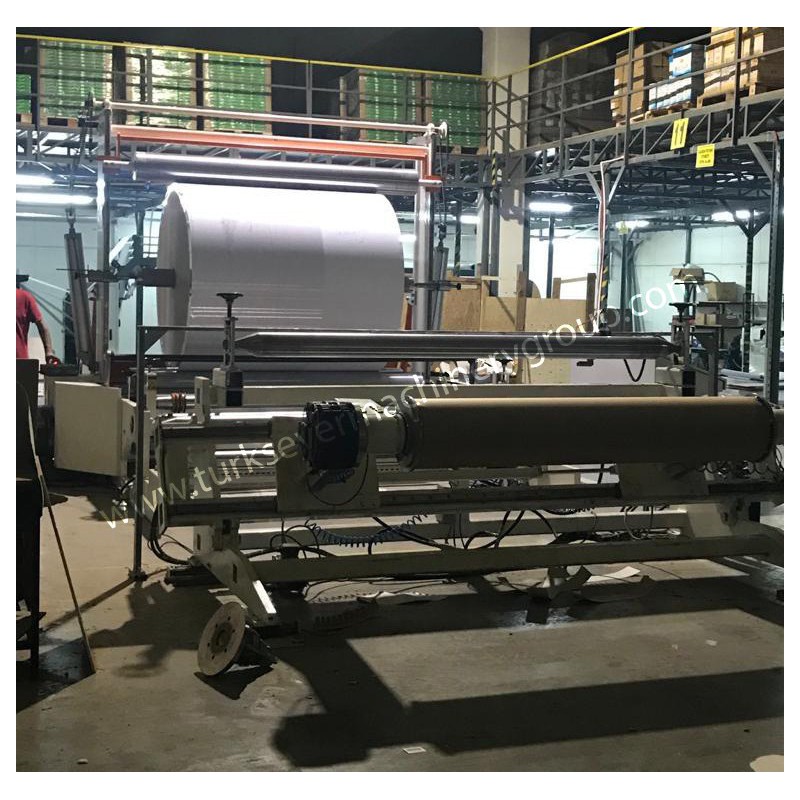

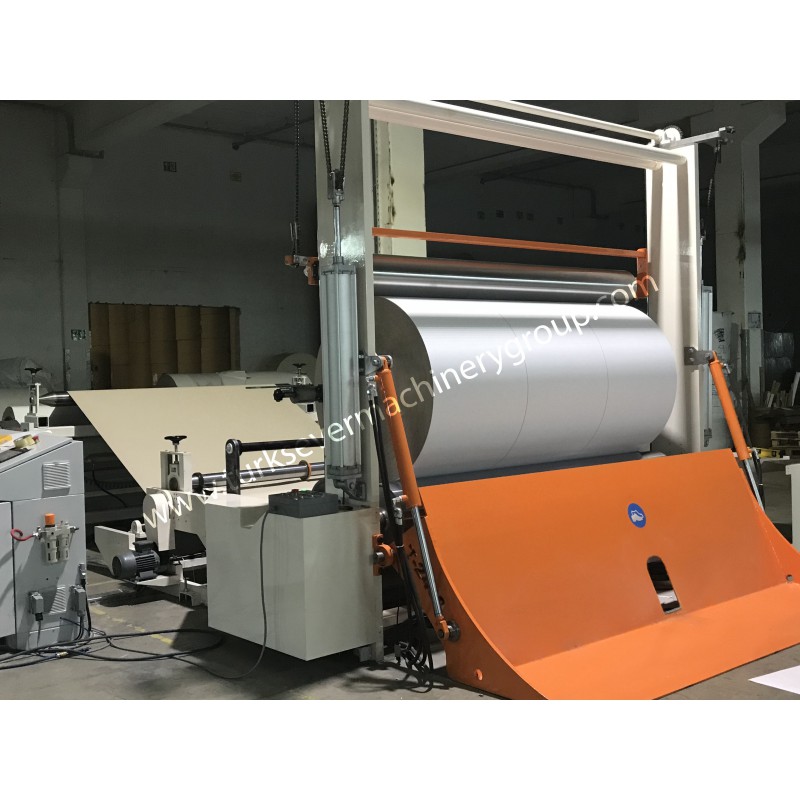

Jumbo Roll Paper Slitter

UNWİNDER UNİT

Maximum Ø1500 mm diameter bobbin can be loaded to the unwinder unit.
Solvent unit max. 2500mm Wide Coil Can Be Loaded.
The coil can be taken from the ground hydraulically and can be shifted to the right or left.
Load Cell Controlled Fully Automatic Tension Control System is available. The thickness of the paper
Maintain the same tension from the beginning of the bobbin to the end based on the kilogram set according to
does.
2 Pneumatic Brake with bearing on both sides.
Solvent group on Linear Guideways.
3 "-6" Multiple grippers.

EDGE CONTROL UNIT
It is controlled by an electric motor and reducer system.
Connected to the body using linner screws and nuts.
Warp group is connected to the hike with liner slides from four corners.
Provides precise edge control in 0-1 mm range with ultrasonic sensor
The machine is controlled from the control screen.

CUTTING UNIT
There is a rotating air knife holder system consisting of 5 pieces.
All of the air knives work on each linner bed.

WINDER UNIT
Winding in diameters of max.1500mm can be done in coils.
Winding with a maximum width of 2500 mm can be made in the Winder Unit.
1 pcs 55 KW A.C. motor is available.
One pressor roller to balance the winding smoothness on the winding bobbins
available.

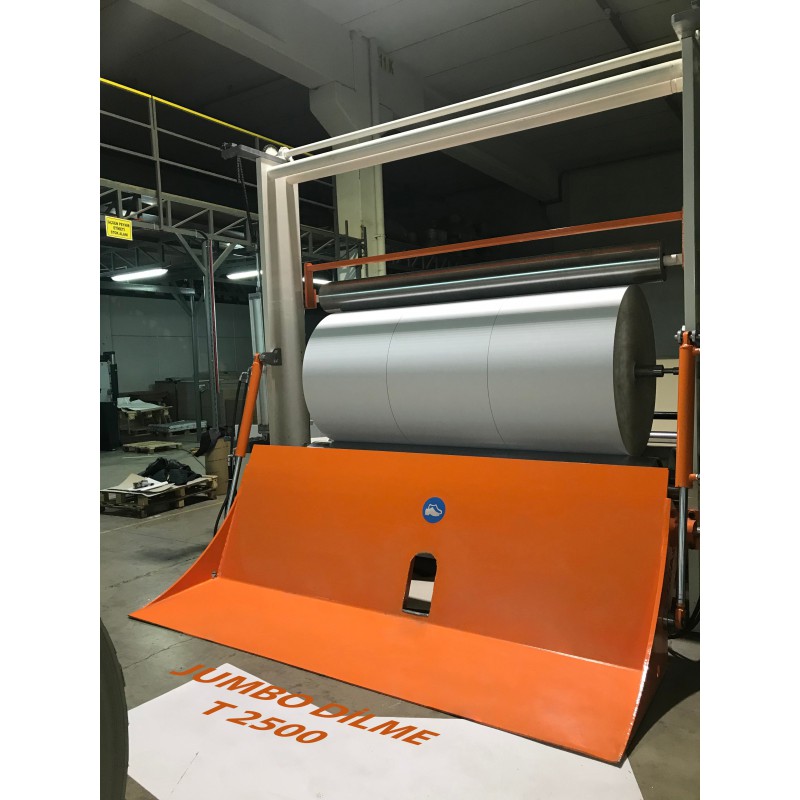

There is a hydraulic pusher system for lowering the coiled bobbin.
When the coil comes out between two large cylinders, with a bucket in front to lower the coil properly.
is carried out.

CONTROL UNIT
Electric and Electronic Control panel Piano type.
It has been designed in a simple and understandable way for the operator.
4
Speed ​​Information - Metering - Winder Tensions - Stopping at the set meter - Working times -
controlling all of the motors - controlling pneumatic systems, etc. All about the machine
It is possible to see, monitor and change functions.
