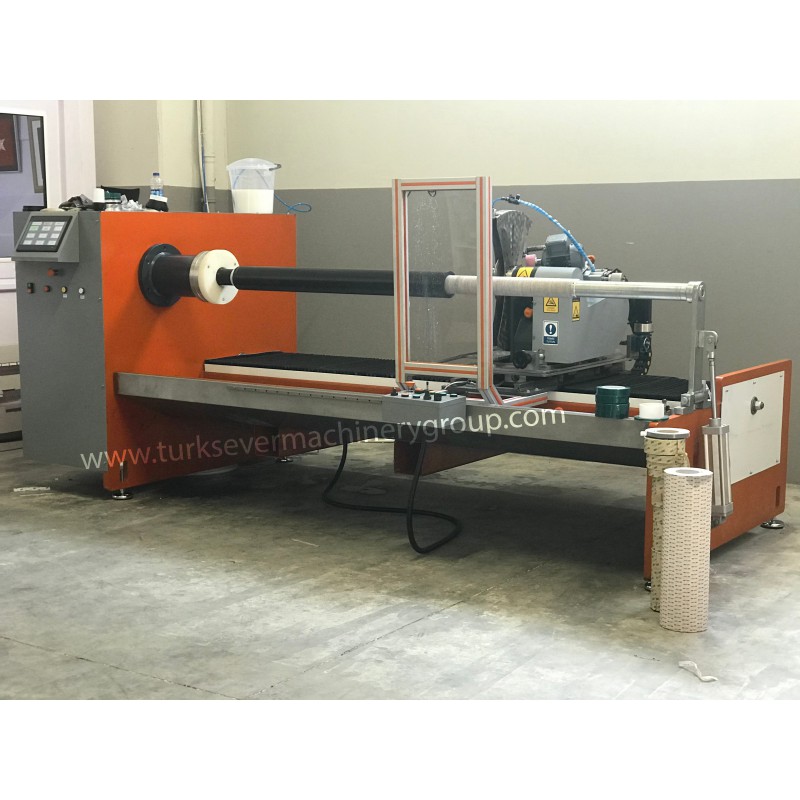

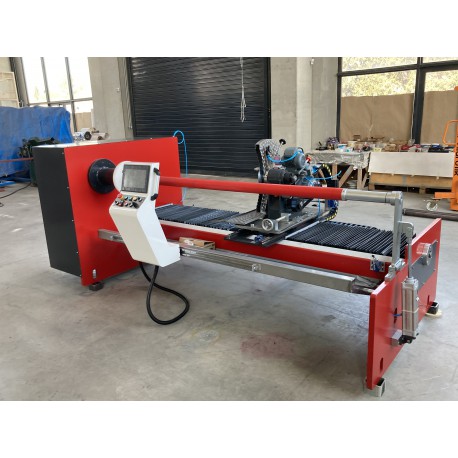

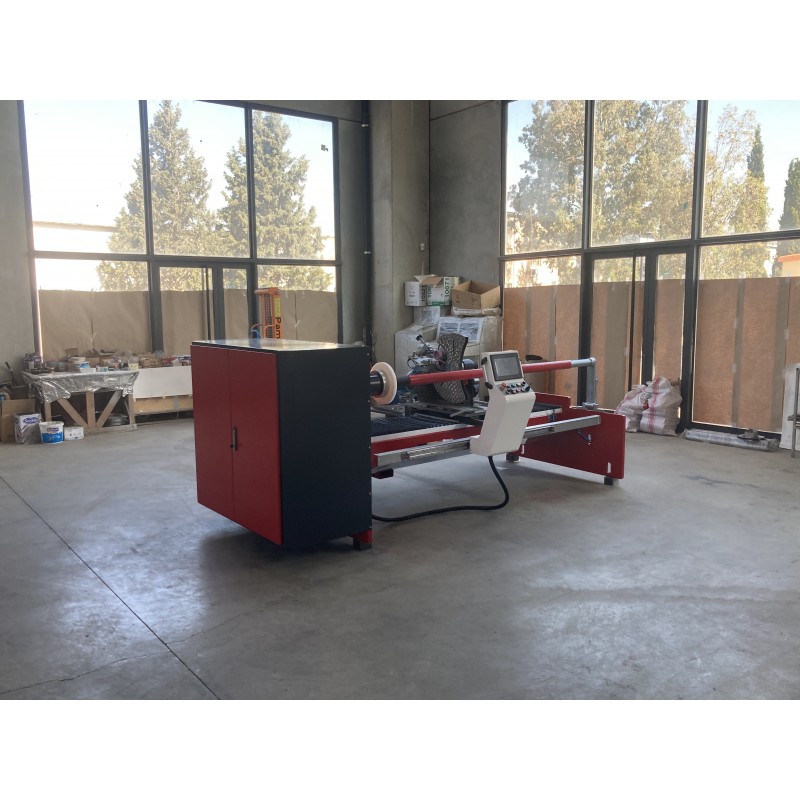

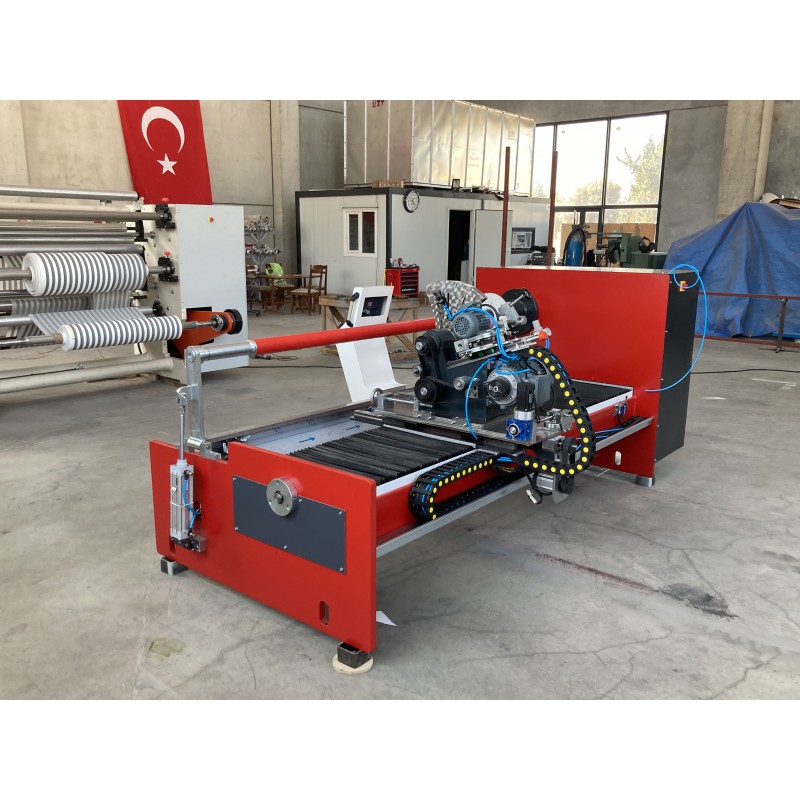

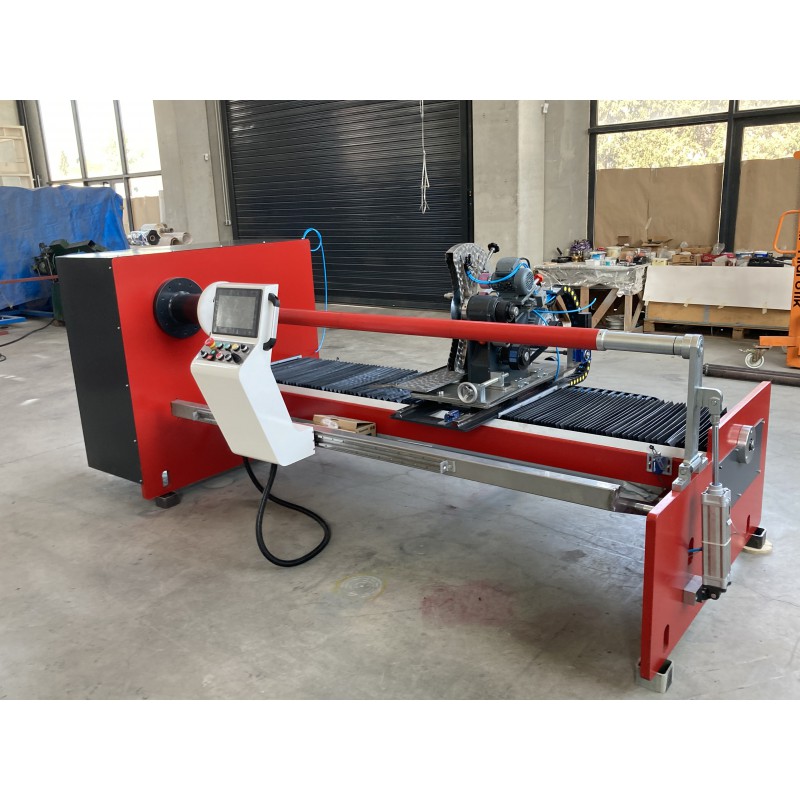

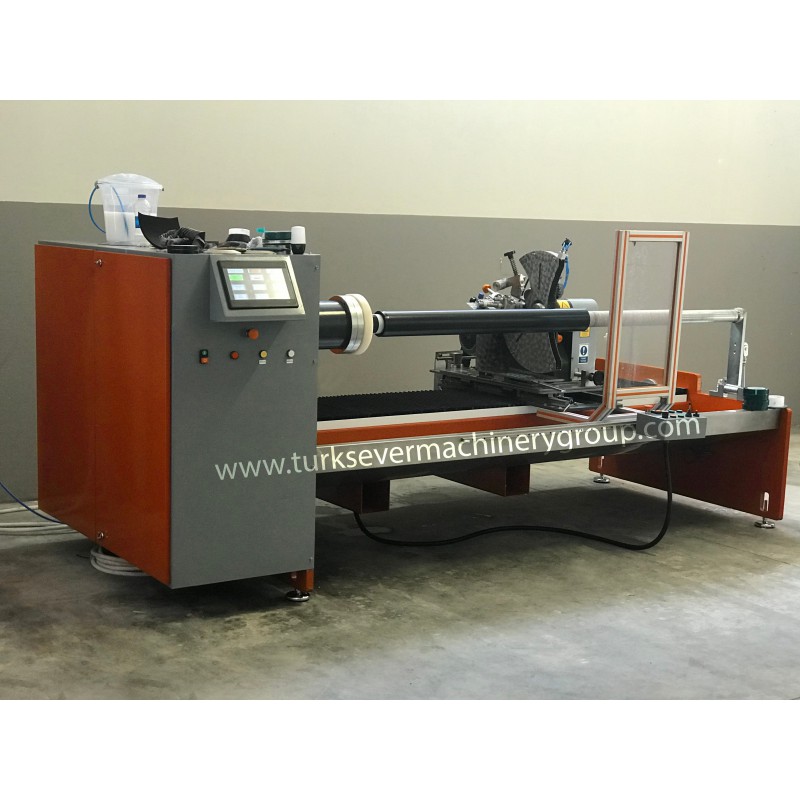

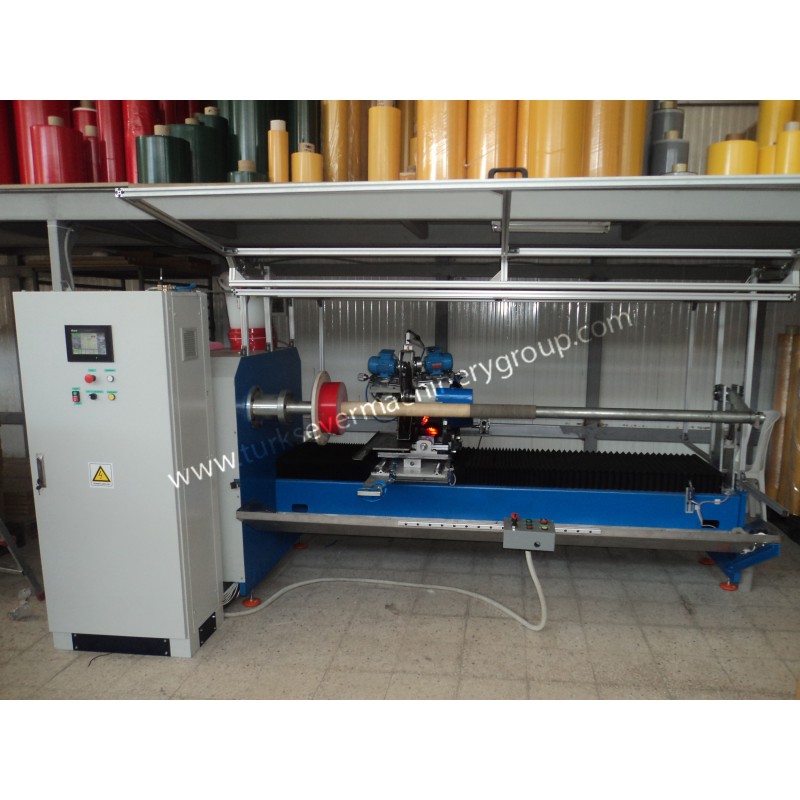

LOG SLİTTER

Touch Panel:

-10 inch color touch screen.
-Turkish software.
-It allows to perform all operations on the machine.
Shows the failure status.
Prescription is available.

Bobbin Sizes That Can Be Worked:

. Outer bobbin diameter = 400 mm

. Knife diameter = 460mm. maximum

. Fast adjustment with laser.

. Edge width = 1800 mm

. Inner core diameter = 76mm

. Sensitivity 0.1 mm

. Pneumatic shaft holder.

. Shaft ground clearance 1200mm

. Automatic water spray

. Min. Speed ​​and Max. Speed ​​adjustable in all engines

. Knife angle adjustable +5. -5 ° C

. Automatic sharpening

. Automatic deburring

. Gradual and adjustable approach and cutting speed
(adjusting according to material type and diameter)

. With 3 servo motor drivers

. With 4 A.C motor drivers

. Knife miter setting

. Automatic level adjustment by entering the bobbin diameter

. In addition, healthy product cutting feature with first angle, last angle, normal angle feature

. Automatic sharpening feature even when the blade is running idle

. Opening and closing of the shaft arm with pneumatic system

. Protective front guard with pneumatic system.

. Single cut feature

. Practically manual cutting feature with manual page feature. You can also enter the desired size and cut
feature of sending head to target.

. Manual operation of the cutting head vertically and horizontally with its joystick feature

. Automatic blade sharpening feature at the desired speed by entering the blade sharpening cycle

. The system that does not need a hydraulic system by using 3 point servo.

. 3-stage speed cutting input and also feature of burr cutting speed.
