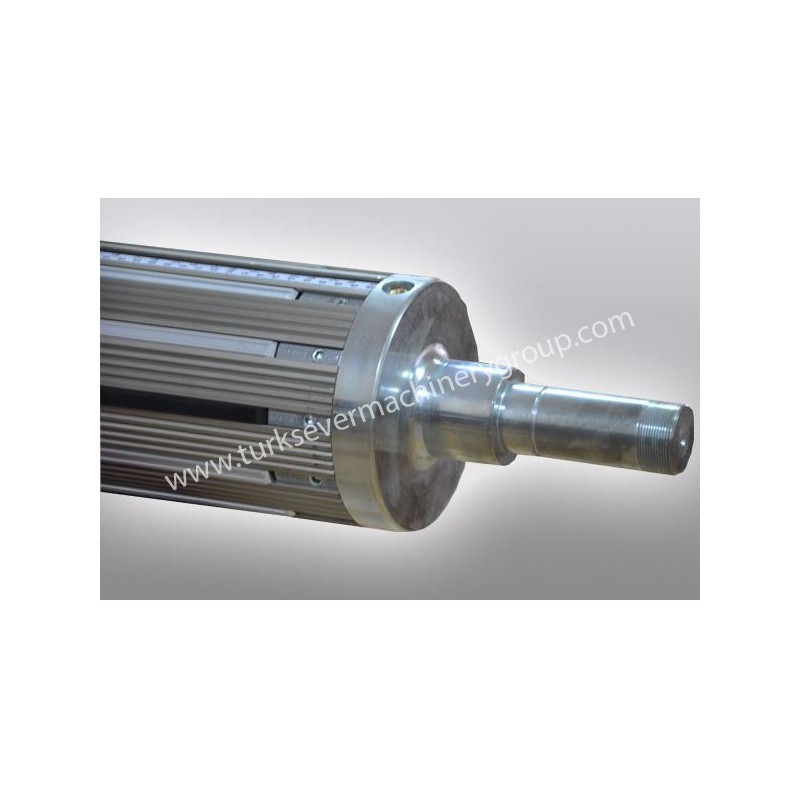

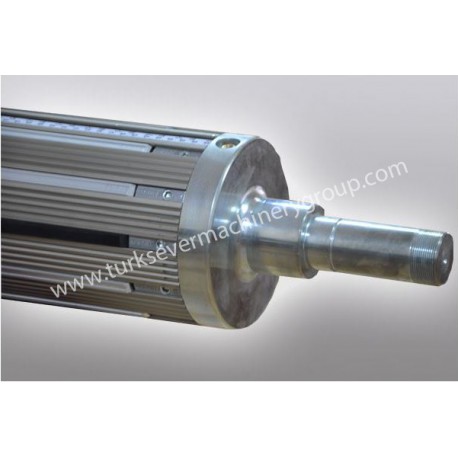

Aluminum Pneumatic Shaft

Properties	Aluminum & Steel
Çap	Standard body sizes are in 2.5", 3", 4", 6" and special production in 5", 8", 12" is also available.
Length	250 mm- 6000 mm

3" ALUMINUM SHAFT Our Pneumatic shafts are manufactured in sizes between 250 mm and 6000 mm. They can be manufactured in sizes up to 6000 mm in line with special customer demands. Standard body sizes are in 2.5", 3", 4", 6" and special production in 5", 8", 12" is also available.
Our Pneumatic shafts are manufactured with aluminum extrusion technique by using feder method and as hardened 100-115 hrb. Our aluminum profiles are coated with anodic oxidization in 25 micron thickness and varnish against corrosion and shocks to increase surface hardness and resistance. Our Pneumatic shaft heads are manufactured as per technical drawings of our customers They are also made of special steel according to the area of use and are hardened 40-55 hrc. Our Pneumatic shaft heads are coated with chrome, phosphate and zinc to increase corrosion resistance and surface quality.
All our products are shipped after their permeability, resistance and balance tests are completed.
