Pneumatic Shaft There are 3 products.

Subcategories

•

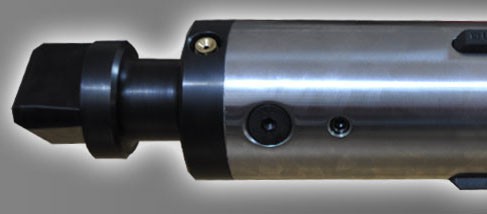

  Steel Pneumatic Shaft

  Our STEEL Pneumatic shafts are manufactured in sizes between 300 mm and 6000 mm. Our body profiles are manufactured from special alloyed cold drawn steel tubes in line with special customer demands.

  Standard body sizes are in 2.5", 3", 4", 6" and special production in 5", 8", 12" is also available.
  Our steel shaft bodies are coated with hard chrome and zinc against corrosion and abrasion.

  Our shaft heads are manufactured as per technical drawings of our customers. They are made of special steel as per area of use and are hardened 50-55 hrc. They are also made of special steel according to the area of use and are hardened 40-55 hrc.. All our products are shipped after their permeability, resistance and balance tests are completed.Çelik şaft

•

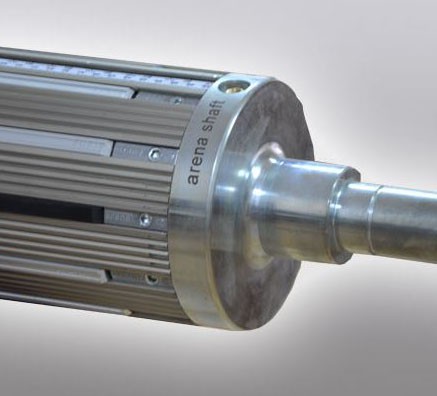

  Aluminum Pneumatic Shaft

  • 3" ALUMINUM SHAFT Our Pneumatic shafts are manufactured in sizes between 250 mm and 6000 mm. They can be manufactured in sizes up to 6000 mm in line with special customer demands. Standard body sizes are in 2.5", 3", 4", 6" and special production in 5", 8", 12" is also available.

  • Our Pneumatic shafts are manufactured with aluminum extrusion technique by using feder method and as hardened 100-115 hrb. Our aluminum profiles are coated with anodic oxidization in 25 micron thickness and varnish against corrosion and shocks to increase surface hardness and resistance. Our Pneumatic shaft heads are manufactured as per technical drawings of our customers They are also made of special steel according to the area of use and are hardened 40-55 hrc. Our Pneumatic shaft heads are coated with chrome, phosphate and zinc to increase corrosion resistance and surface quality.

  • All our products are shipped after their permeability, resistance and balance tests are completed.

•

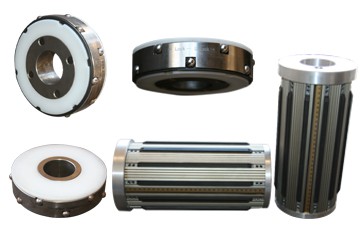

  Aluminum and Mechanic...

  The standard size of our aluminum adaptors are in 3" and 6" and they can also be manufactured in 5", 8", 10, 12" specially.
  Our adaptors can be manufactured with rubber in 150 mm size being suitable for use as steel bobbin. All our products are shipped after their permeability, resistance and balance tests are completed.
